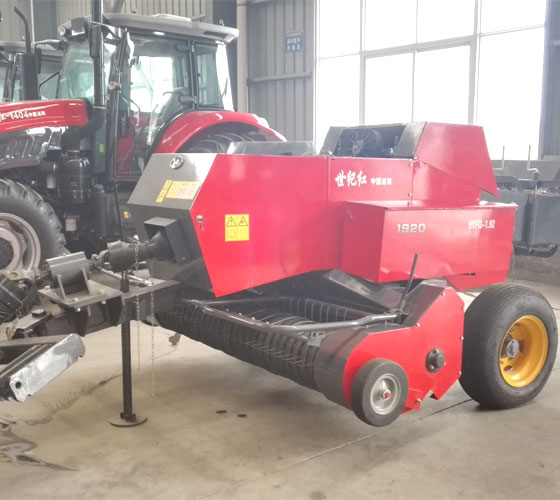

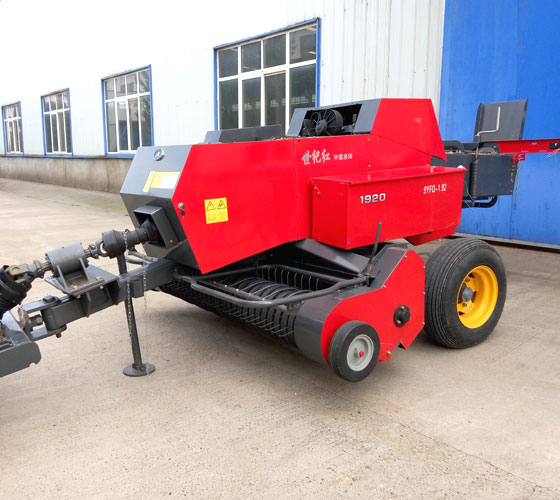

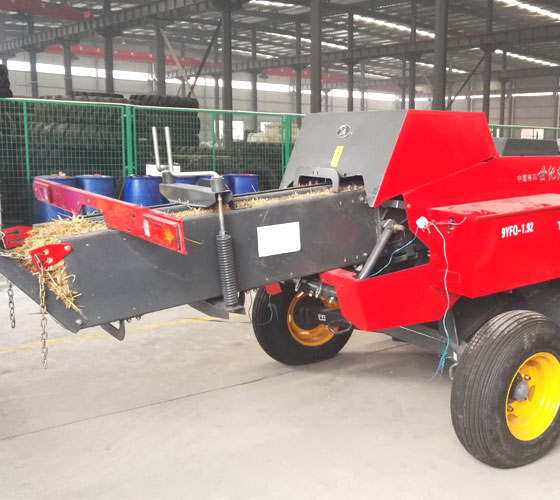

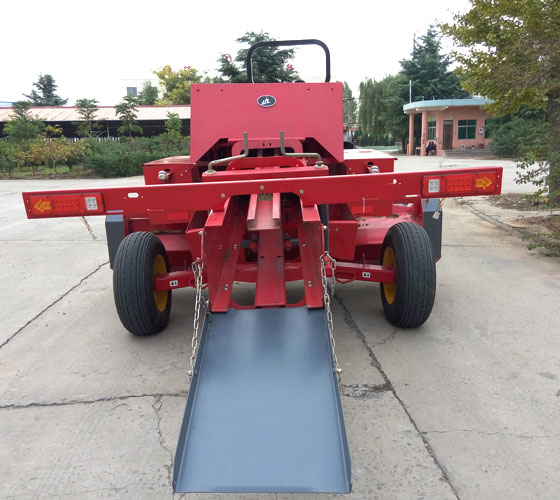

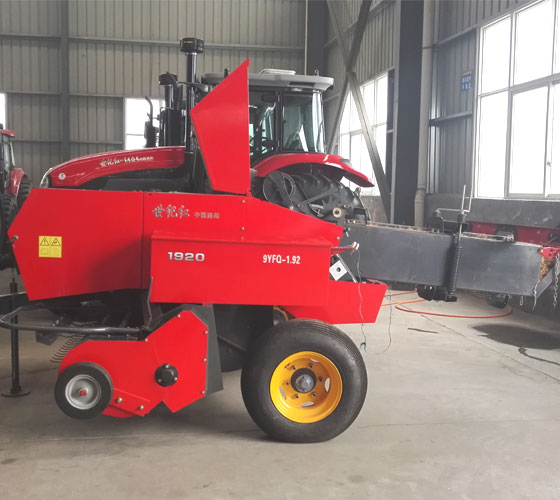

Square Baler

Product description : 1.With high strength steel frame, axle, hook and welded box beam structure, the smooth power transmission system ensures smooth operation. 2.Middle pickup impro...

Product Features

TECHNICAL PARAMETERS

CASE

SERVICE SUPPORT

Product Features

1.With high strength steel frame, axle, hook and welded box beam structure, the smooth power transmission system ensures smooth operation.
2.Middle pickup improves pick-up ability
3.The body is compact and low, easy to observe the operation

TECHNICAL PARAMETERS

Model	9YFQ-1.92（DK1920）	9YFQ-2.50（DK2500）
Pickup width tine to tine(mm)	1782	2282
Inside panel to panel(mm)	1928	2428
Outside panel to panel(mm)	2264	2764
No. of tine bars	4	4
No.of tines	112	136
Length of stroke(mm)	550	550
Type of mechanism	Knotter
Protection	Shear bolt
Mini. Matched Tractor(KW)	40.4
Minimum weight of tractor(kg)	2360
PTO speed(rpm)	540
Dimension without Bale Chute(L×W×H)mm	4600×2600×1730	4600×3030×1730
Dimension with Bale Chute(L×W×H)mm	5500×2600×1730	5500×3030×1730
weight(kg)	1690	1750
efficiency	〉3000kg/hour
