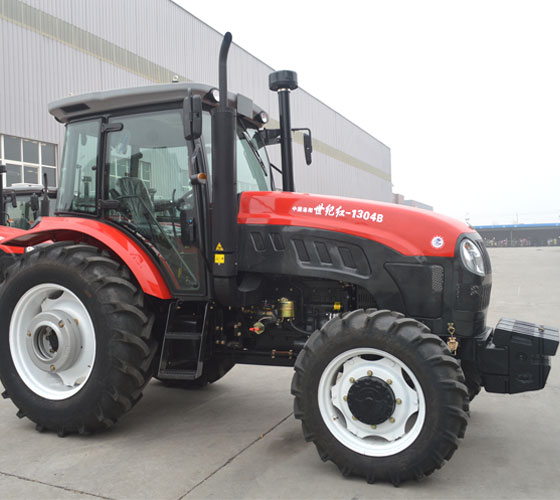

SJH SK series(80-130HP)

Product description : 80-130HP tractor is highly configured with advanced components and multiple optional accessories. YTO diesel engine 16F+8R shift PTO:540/1000 r/min Dual-function clutch Metal hood Disc brake Shuttle shift hydrostatic steering system

Product Features

TECHNICAL PARAMETERS

CASE

SERVICE SUPPORT

Product Features

1.Beautiful engine hood , Streamlined appearance.
2.YTO engine is assambled to provide high horse power along with low fuel consumption and strong power.
3.More powerful gearbox adopts 16F+16R(or12F+12R),wide driving range(0.32km/h-45KM/h) for easy operations and higer efficiency.
4.Double fuel tank and powerful traction match large agricultural machinery.
5.Options 1-3 groups hydraulic output,easy to match large agricultural machinery.
6.Luxurious cabin,little noise,Heater and Air condition can be optional.

TECHNICAL PARAMETERS

Model		SJH804	SJH900/SJH904	SJH1000/SJH1004	SJH1100/SJH1104		SJH1250B/SJH1254B	SJH1200B/1204B	SJH1300B/1304B
Type		4×2 / 4×4
overall dimension（mm）	Length	4250				4600(2WD)/4720(4WD)
	Width	2070				2180
	Height	2720（2W) / 2830（4W）				3100(with cabin)/2970
Min.Ground Clearance(mm)		450(bracket of the fuel tank)/380(bottom of front axle)
Wheel Tread(mm)	Front	（1550）、1650、1750、1850（2WD）/1640（4WD）
	Rear	（1620）、1710、1820、1910、2020
Structure Weight（KG)	With Cab	3400/3800				3720/4270
	Without Cab	3150/3550				3560/4110
Counter weight(KG)	Front	220（2WD）/400（4WD）
	Rear	300（80～110HP）/200（120～130HP）
Engine	Model	YTO
	Cylinder	4(6)
	Bore×stroke	110×135	115×135	108×125	110×135		110×135	110×135	105×125
	Rated power(kW)	59	66.2	73.5	81		92	88.2	95.6
	Rated Speed	2200
Max traction force（KN）		16.9	17.6/19.1	18.7/20.3	19.8/22.3		20.7/24.3	21.6/26.3	22.8/27.5
Max PTO power（KW）		50	56.3	62.5	68.9		76.6	75	78
PTO Rotating Speed(r/min)		760/850（option 540/760、760/1000、540/1000）
Tyre	Front	7.5-20 （2WD）/ 11.2-24（4WD）
	Rear	16.9-34
Gearbox		F16+8R
Speed(Km/h)		2.31 ～34.85
