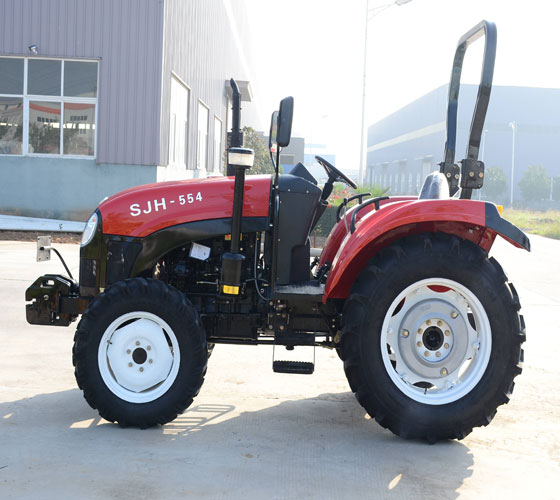

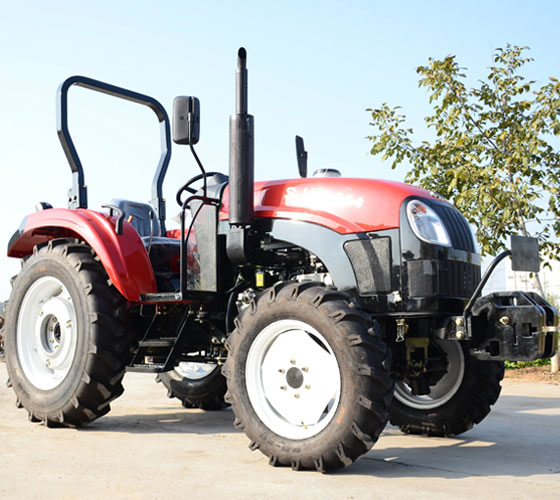

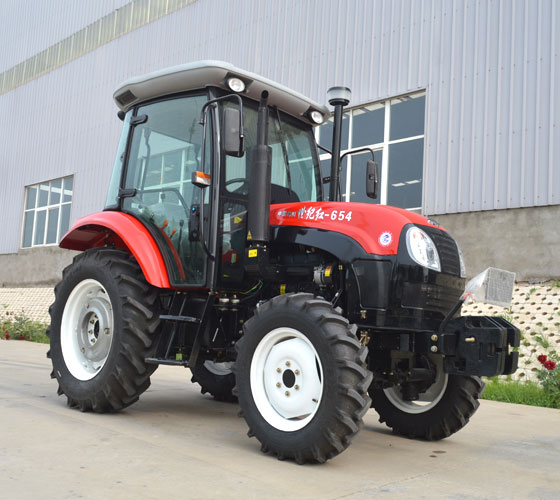

SJH SC series(40-65HP)

Product description : 40-65HP tractor is highly configured with advanced components and multiple optional accessories. YTO diesel engine 12F+12R shift PTO:540/1000 r/min 1 set hydraulic output Dual-function clutch Metal hood Disc brake Meshing of shift hydrostatic st

Product Features

TECHNICAL PARAMETERS

CASE

SERVICE SUPPORT

Product Features

1.YTO engine is assambled to provide high horse power along with low fuel consumption and strong power.
2.Enhanced paddy front axle with smaller turning radius,being flexible and reliable;Independent PTO fulfills rotary,harvesting,planting,fertilizing,etc.
3.Double fuel tank and powerful traction match large agricultural machinery.
4.Controlled tilling depth with higher working efficiency.

TECHNICAL PARAMETERS

Model		SJH400 /SJH404	SJH450 /SJH454	SJH500 /SJH504	SJH550 /SJH554	SJH600/ SJH604	SJH654
Type		4×2 / 4×4
overall dimension（mm）	Length	3980			4030
	Width	1650
	Height	2130			2150
Min.Ground Clearance(mm)		400（2WD）/310（4WD）			400（2WD）/325（4WD）
Wheel Tread(mm)	Front	1150、1250、1350、1450（2WD）/1250（4WD）
	Rear	1350(1250～1550 for option)
Structure Weight（KG)	With Cab	2050（2WD）/2165（4WD）
	Without Cab	1870（2WD）/1965（4WD）
Counter weight(KG)	Front	120
	Rear	300
Engine	Model	YSD490T	YD4JT	Y4100T	Y4102T（550)/YT4A2-23		YT4B2-23
	Cylinder	4
	Capacity	2.67	2.977	3.707	3.875（550）/4.15		4.4
	Rated power(kW)	29.4	33.1	36.8	40.5	44.1	48
	Rated Speed	2400	2300	2300	2200（550）/2300		2300
PTO Rotating Speed(r/min)		540/1000(option:540/760)
Tyre	Front	6.0-16（2WD）/8.3-20			6.50-16（2WD）/9.5-20
	Rear	12.4-28			13.6-28
Gearbox		F12+R12
Speed(Km/h)		2.35 ～32.61
